System 450™ Modular Electronic Controls

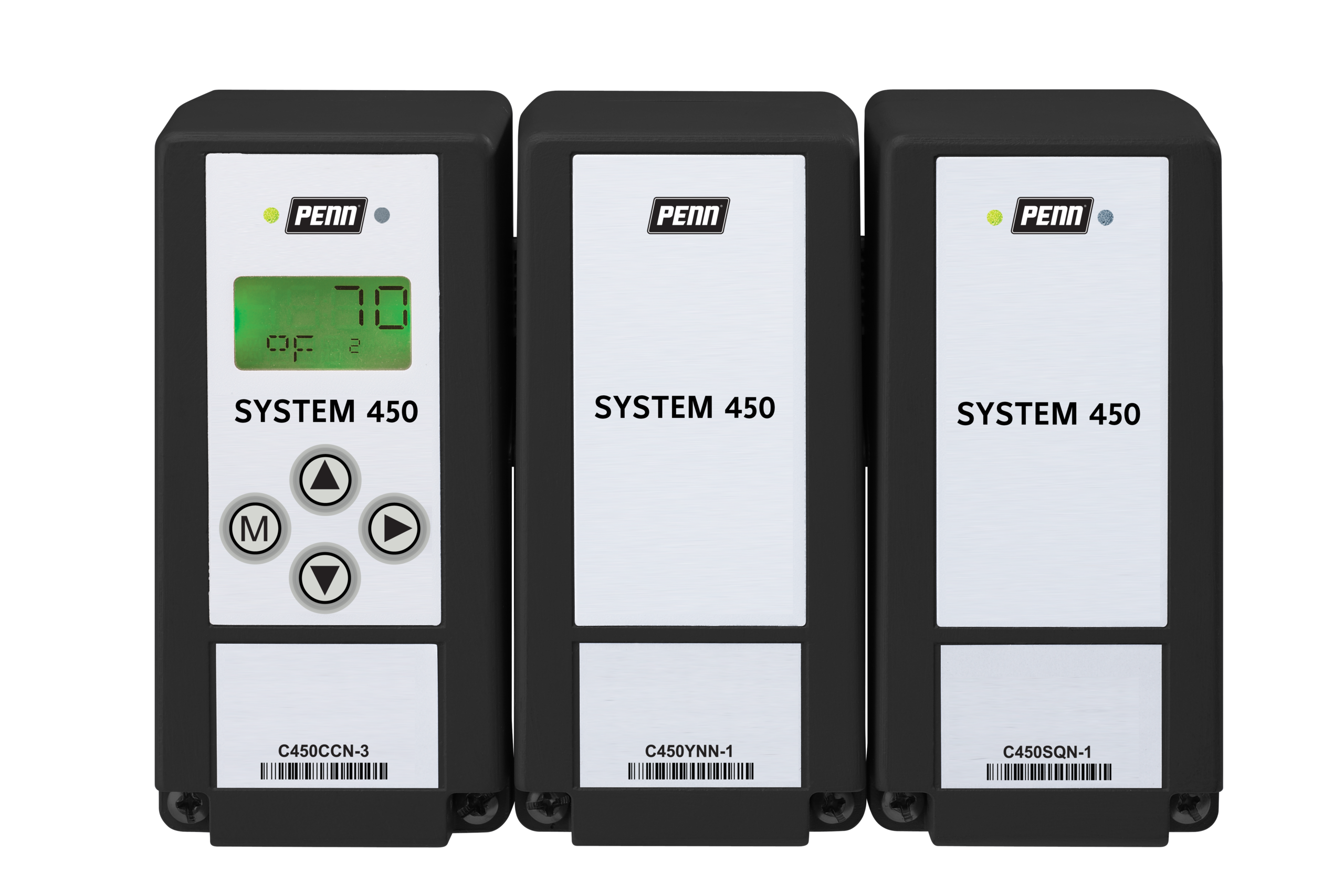

System 450™ is a family of modular, digital electronic controls that is easily assembled and set up to provide reliable temperature, pressure, and humidity control for a wide variety of Heating, Ventilating, Air Conditioning and Refrigeration (HVACR) and commercial/industrial process applications. The System 450 control system is designed to replace System 350™ control system and System 27, and provide many additional features and benefits with less than a dozen model variations. All System 450 control modules are multipurpose and field configurable out-of-the-box; each module is designed for use in temperature, pressure, and humidity systems. A System 450 control system can be easily assembled and configured to monitor and control temperature, pressure, and humidity simultaneously. A single C450 control module can be set up as a stand-alone control or connected to expansion modules to control up to ten outputs based on any of the three available inputs. A control system may consist of relay outputs (Single-Pole, Double-Throw [SPDT]), analog outputs (0–10 VDC or 4–20 mA), or any combination of relay and analog outputs.

• Durable, compact modular design with plug-together connectors and DIN rail or direct wall mount capability
• Multipurpose, field-configurable modules designed for global use
• Backlit Liquid Crystal Display (LCD) and four-button touchpad user interface
• Up to three inputs and up to ten outputs (relay or analog)
• Versatile, all-in-one, stand-alone control modules
• An extensive suite of compatible temperature and humidity sensors as well as pressure transducers
• High input signal selection
• Differential control
• Adjustable user-defined reset setpoint (C450R Only)
• Adjustable minimum and maximum setpoint temperature (C450R only)
• Selectable warm weather shutdown temperature (C450R only)
• Adjustable setback temperature (C450R only)
